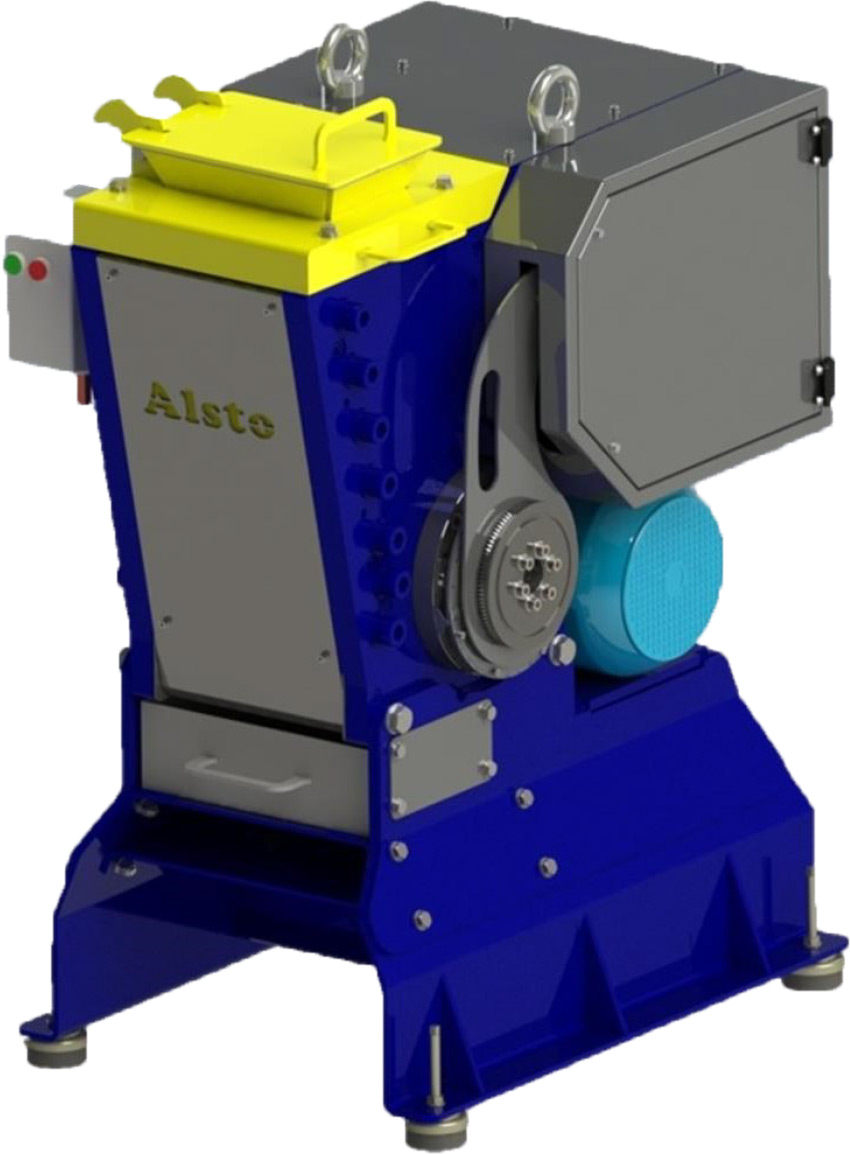

The Alsto JC2513 is high performance primary jaw crusher engineered for rapid reduction of lump ore to 2 mm in a single step.
A heavy duty jaw crusher with an high reduction ratio and sample throughput. The JC2513 Jaw Crusher is one of the fastest fine jaw crushers on the market. It ideally suits high production laboratories employing high quality sample preparation techniques.
Technical Data:
Jaw Inlet: 130 mm x 250 mm
Maximum Feed Size: 110 mm i.e. 85% of jaw inlet
Minimum Product Size: 85% less than 2 mm
Throughput: 180 kg/h at minimum product size
Dust Extraction Points: One at 100 mm O.D. connection spigot
Dust Extraction Flow: 150 L/sec
Electrical Requirements (3 phase): 7.5 kW
Mass (crated): 1,100 kg
Dimensions (crated): 930 mm L x 1080 mm W x 1380 mm H
